100W Smart LED UFO Highbay Light
Retail Price
Market Price
Por favor inicie sesión para ver el precio o comprar este artículo
Relevant Accessories：
- Descripción
- 右侧参数
-
- Nombre del producto: 100W Smart LED UFO Highbay Light
- Buy It Now :
Combining long life and outstanding efficacy up to 140Lm/W, MORSTAR UFO high bay light offers a cost-effective solution to maximize energy and maintenance savings
-
Item No.:
MA-HHB3101AS-100W -
Payment:
TT or L/C -
Product Origin:
FuJian， China -
Color:
Black -
Goods Stock:
500 -
Min Order:
500 -
Lead Time:
10-30days
PRODUCT DESCRIPTION:
LED UFO high bay light series based on Morlink APP intelligent control. This series of products provides 4 installation methods to adapt to different installation conditions. The one-piece die-casting aluminum casing is used to ensure the quality and also play a good heat dissipation effect. Low UGR (<28) and high luminous efficacy output (140LM/W), combined with a plug-and-play microwave motion sensor and MORLINK APP, will further reduce lighting energy consumption and labor costs.
FEATURES:
• Input voltage: 120V-277V,AC120V-347V available
• Power factor:> 0.95，THD: <20%
• 0-10V dimming standard，Flicker-free
• Lifetime: L70 > 50,000 hours,CRI>：Ra>70/80
• Environmental working temperature: -22°F to 104°F（-30°to +40°）
• Stronger housing with good heat dissipation
• 4 kinds of mounting available：Ceiling with loop /Ceiling with hook /Wall mounting/
Pandent mountingCONSTRUCTION:
• Fins design, advective holes and grooves in each fin, good for heat dissipation;
• Has high impact frosted white acrylic lens
• Black polyester powder coat finishRECOMMENDED USE:
• Warehouses,Factory
• Exhibition Room,Gas Station,Supermarket
• High Bay and Low Bay applicationsWARRANTY:
5-year standard warranty
Sample Order:MA-HHB3101AS-100W-85-H-50
FAMILY
SERIES CODE
WATTAGE
Beam
CCT
Efficiency
OPTIONS
MA-HHB=LED UFO
High Bay Light
3101AS
100W
85°
110°
40K=4000K
50K=5000K
57K=5700K
H=140LM/W
Blank
MS=Motion Sensor
EM=Battery Backup
PS=PIR Sensor
DIMENSION:
POWER
A (INCH)
B (INCH)
C (INCH)
100W
10.09
4.24
6.76
SPECIFACTION:
ITEM
SPECIFICATION
Details
GENERAL PERFORMANCE
Power Consumption
100W
Equivalent Wattage
250W HID
Lumens Delivered
14000LM
Efficacy
140LM/W
CRI
80
Color Temperature
4000K/5000K/5700K/6500K
L70 Lumen maintenance
≥50000H
ELECTRICAL
Power Factor
＞0.95
Input Voltage
100-277V/120-347V
Dimming
0-10v Dimming Range:0%-100%
Surge protection
Surge protection: 4KV line-line, 6KV line-earth
PHYSICAL
Mounting
Suspending (Rings type, Hook type)
Operating Temperature
-22°F to 104°F (-30°C to + 40°C)
Humidity
20% to 80% RH non-condensing
QUALIFICATION
Qualifications
UL Listed,DLC Premium
Material Usage
RoHS compliant; no mercury
Environment
Indoor / Wet, IP65
Warranty
5 Years

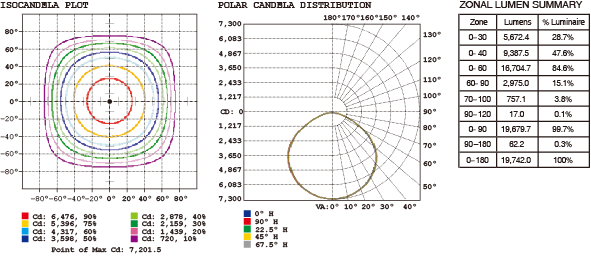

LUMINOUS INTENSITY DISTRIBUTION CURVE:

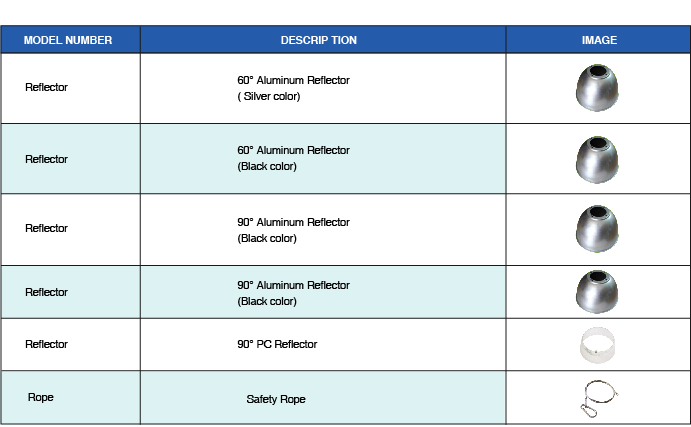

ACCESSORIES:

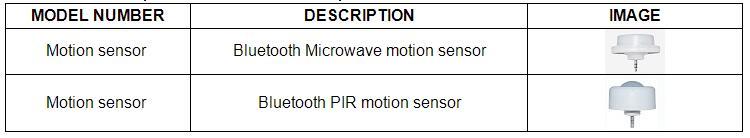

ACCESSORIES (For APP Smart Fixture):
PACKING/WEIGHT INFORMATION:
Fixture
Outer box
(L*W*H)
Qty/Ctn
(pcs)
N.W/pcs
(Kg)
G.W/pcs
(Kg)
Fixture
347*347*162
（13.36*13.36*6.38）
1
2.33
2.93

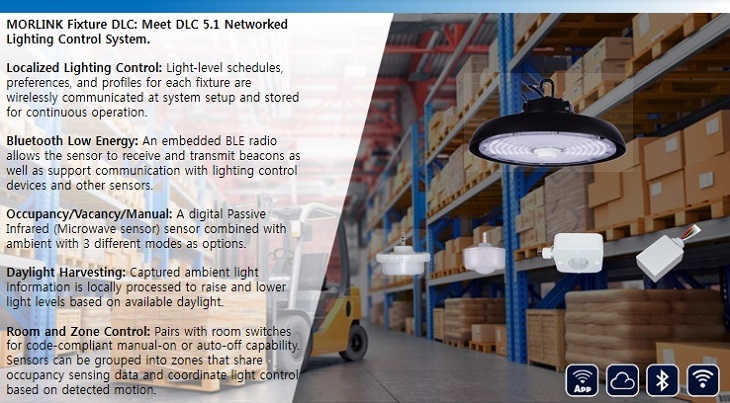

MORLINK CONTROLS:
Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compliance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future, easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your business.
Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product.
2. You can also directly purchase the whole fixture integrated with Morlink® wireless controller.
Main Functions of Morlink Commercial Lighting Solution：
Energy Management• Create actions and scenes that can be automatically executed to implement energy-saving strategies.
• Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather condi tions, etc.
• View, compare and analyze the power consumption of devices and groups by day, month or year.
Device Control• View and control devices from a map of the lighting layout.
• Monitor device conditions including, status, operation time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal status” and notification to maintenance team.
Human Centric LightingEasily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
FAQ：
1. How can smart lamps save money?
A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.
2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.
3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.
4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
