18W Indoor Downpuri UVC Downlight

Retail Price

Market Price

Por favor inicie sesión para ver el precio o comprar este artículo

Relevant Accessories:

  • Descripción
  • 右侧参数
    • Nombre del producto: 18W Indoor Downpuri UVC Downlight

    This 18W indoor UV-C disinfection downlight adopts the centrifugal fan inside the device,the indoor air convection effect will be quickly formed,improving disinfection efficiency.The downlight equipped with LED lighting system, down-purification lighting can be operated at the same time.The ultraviolet light is completely enclosed inside the product realizing the coexistence of human and machine.

    • Item No.:

      MA-HUDW501E-18W
    • Payment:

      TT or L/C
    • Product Origin:

      FuJian, China
    • Color:

      White
    • Product Name:  Indoor Downpuri UVC Downlight LED 18W

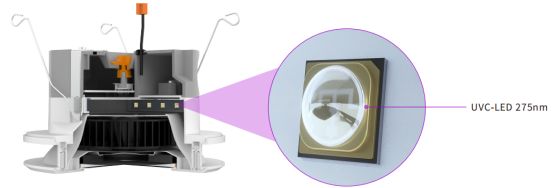

      This UV-C disinfection downlight comes in two models,by the centrifugal fan inside the device to suck the bacteria and viruses floating in the air.The killing rate is 99.9%,which is important for our physical health.Built-in 8 long-life UV LED chips on 2 sides, 10,000 hours of UV maintenance rate ≥ 70%, not easy to break,environmentally friendly and mercury-free.



      This purification UVC downlight equipped with LED lighting system, disinfection lighting can be operated at the same time. According to own interest or the environment,can change CCT.It can be ceiling mounted, widely used in offices, hospital, shopping mall, school, kitchen, toilets and other public places.


      Specification:

      Model No.





      Product power

      18W±2W

      18W±2W

      Input voltage

      100-277V AC

      100-277V AC

      Circulating air volume

      8.1CFM13.8m³/h)

      8.1CFM13.8m³/h)

      Working temperature

      -10~+40

      -10~+40

      Hole size

      5"/ 6" J-BOX

      5"/ 6"

      Product size

      Ø167mm*96mm

      Ø167mm*96mm

      Installation method

      Replacement

      New Recessed

      UVC power

      6W

      6W

      UVC radiant power

      160mw

      160mw

      UVC light angle

      30°

      30°

      Luminous flux

      850Lm±10%

      850Lm±10%

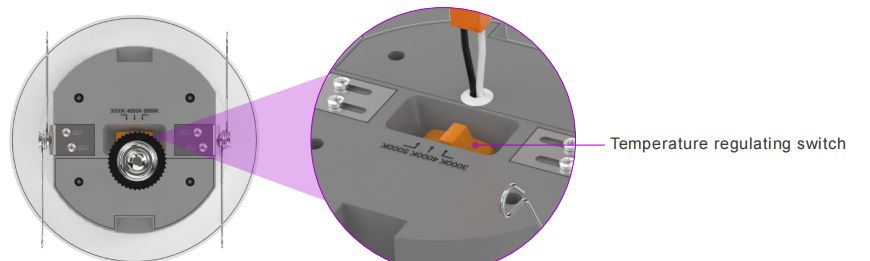

      Adjustable CCT

      3000K/4000K/5000K

      3000K/4000K/5000K

      G.W per lamp

      0.84kg

      0.84kg


      Dimension:








       Features:

      No UV leakage,it is totally safe for the occupied space

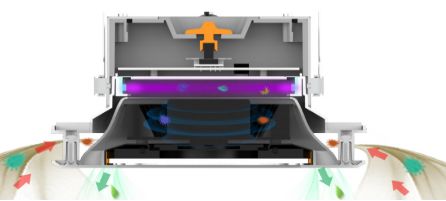

      Centrifugal fan design to improve disinfection efficiency





      Newest UV LED applicated, longer lifespan





      LED lighting and UV disinfection mode switchable

      CCT change






      Installation:

      xxx replacement installation:

      1.Screw the E26 lamp holder of the accessory package into the corresponding socket;
      2.Connect the terminal block on the E26 lamp holder with the terminal block on the main frame;
      3.Clip the spring in the main frame into the J-BOX installation point and push it upward.
      xxx Embedded Installation:
      1.Use a tool to fix the embedded mounting tabs in the accessory bag on the main frame, and adjust the
      distance between the two mounting tabs according to the 5-inch or 6-inch hole in the ceiling.
      2.Press the two sides of the shrapnel with your hands, press the middle to align the installation hole, and push
      it into the ceiling. The lamp is positioned on the ceiling by the elastic force of the installation shrapnel.

      Application:

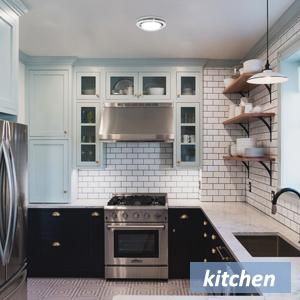

      office lighting uvc embedded troffer kitchen lighting uvc embedded troffer market lighting uvc embedded troffer

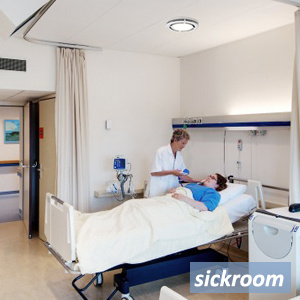

      sickroom lighting uvc embedded troffer washroom lighting uvc embedded troffer hospital lighting uvc embedded troffer
