Intelligent LED Parking Lot Shoebox Light

Retail Price

Market Price

Por favor inicie sesión para ver el precio o comprar este artículo

Relevant Accessories:

  • Descripción
  • 右侧参数
    • Nombre del producto: Intelligent LED Parking Lot Shoebox Light

    The Smart control system of LED shoebox floodlights combine the latest intelligent control technology with high-performance area lighting products, and are used for parking lots, driveways, outdoor courts (basketball, tennis, volleyball, etc.) and other commercial and industrial places that require a lot of light.

    • Item No.:

      MA-EPLSG2-100W
    • Payment:

      TT or L/C
    • Product Origin:

      FuJian, China
    • Color:

      Black
    • Min Order:

      50
    • Lead Time:

      10-30days



    PRODUCT DESCRIPTION:

    Morstar Lighting provides a simple, safe and efficient solution. It is Smart IP66 Shoebox Street Light, which IP66-rated lamps provide at least 130 lumens per watt, which can replace outdoor lighting up to 1000W MH.

    Compared with traditional LED lamps, it has longer service life, lower energy consumption, less electricity expenditure and lower maintenance costs, and the market advantage is more obvious.




    FEATURES:

    1. New Structure Design, More Flexible Lighting Direction
    2. High Quality Drivers 100-277vac/100-347vac,surge Protection 10kv
    3. Power Selectable For Easy To Make Inventory Reserve
    4. Up To 140lm/w@cri 80 Lumens Output,L70>100,000 Hours
    5. Photocell, Daylight Harvest, Microwave Sensor, 1-10v Dim Optional
    6. With Morlink Zigbee Intelligent Control Technology, Simpler, Safer And More Efficient




    CONSTRUCTION:

    They are cast aluminium intelligent Street light design,  better cooling and easy replacement.




    RECOMMENDED USE:

    The traditional architectural style matches most of the scenes, such as parking lots, roads, seaside areas, outdoor applications, etc.

    Operating Temperature -40°F to 122°F (-40°C to +50°C)




    WARRANTY:
    5-year warranty.






    Sample Order:MA-EPLSG2-100W-50K-A-T3





    FAMILY SERIES CODE WATTAGE CCT BREAKET BEAM ANGLE OPTIONS
    MA-EPL=LED Parking Lot Light SG2 100W

    30K=3000K

    40K=4000K

    50K=5000K

    57K=5700K

    Blank

    A=Slip Filter

    B=Arm;B2=Arm(Adj) C=Trunnion;E=Yoke



    T2=Type II

    T3=Type III

    T4=Type IV

    T5=Type V

    Blank

    Ms=Motion Sersor Pc=Photocell






    DIMENSION CHART:



    POWER L (INCH) W (INCH) H (INCH)
    100W  13.14 12.40 2.42




    SPECIFICATION:



    ITEM SPECIFICATION DETAILS


    GENERAL

    PERFORMANCE

    Power Consumption 100W
    Equivalent Wattage 320W MH
    Lumens Delivered 14000LM
    Efficacy 130LM/W/140LM/W(±10%)
    CRI Ra>70/80
    Color Temperature 4000K/5000K/5700K
    Beam Angle TYPEII, TYPEIII, TYPEIV, TYPEV
    L70 Lumen maintenance 70000Hrs (Ta=30°C@L80)
    ELECTRICAL Power Factor ≥0.95
    Input Voltage 120-277VAC/120-347VAC
    Surge Protection 10KA
    Dimming 0-10V dimmable
    PHYSICAL Mounting Slip Fitter/ Direct Mount/Yoke Mount/ Square Bracket
    Operating Temperature -40°F to 122°F
    QUALIFICATION Qualifications UL/cUL, DLC5.1Premium
    Material Usage CE RoHS compliant; no mercury
    Environment outdoor / Wet, IP65
    Warranty 7 Years Warranty






    LUMINOUS INTENSITY DISTRIBUTION CURVE:

    1.MA-EPLSG2-100W



    Intelligent LED Parking Lot Shoebox Light

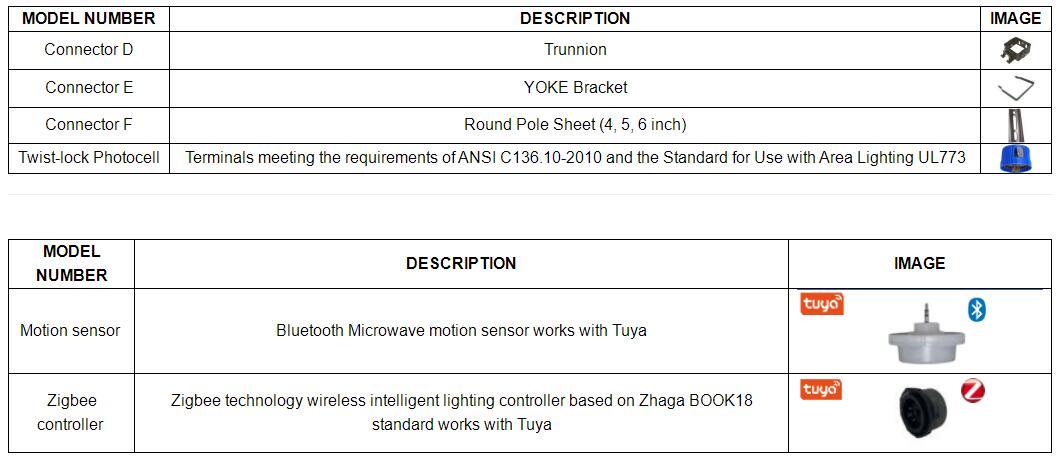

    ACCESSORIES:

    Intelligent LED Parking Lot Shoebox Light



    PACKING/WEIGHT INFORMATION:



    Fixture

    Outer box

    (L*W*H)

    Qty/Ctn

    (pcs)

    N.W/pcs

    (Ibs/Kg)

    G.W/pcs

    (Ibs/Kg)

    Remarks
    Fixture 18.11"*14.37"*5.71" 460*365*145mm 1 6.28/2.85 8.29/3.76 1.0M cable




    MORLINK CONTROLS:



    Morlink® Wireless Controls:
    Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compli-ance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution.  The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides infrastructure based on BLUETOOTH and ZIGBEE technology, allowing your building to face the future, easily upgrade to network solutions, and provide the ability to integrate into IoT solutions suitable for your business.


    •




    Note:
    For intelligent control products, Morstar provides two solutions:
    1. Purchase a Morlink controller to transform your existing product
    2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor has been embedded in the lamp, the labor cost for installation can be greatly reduced.

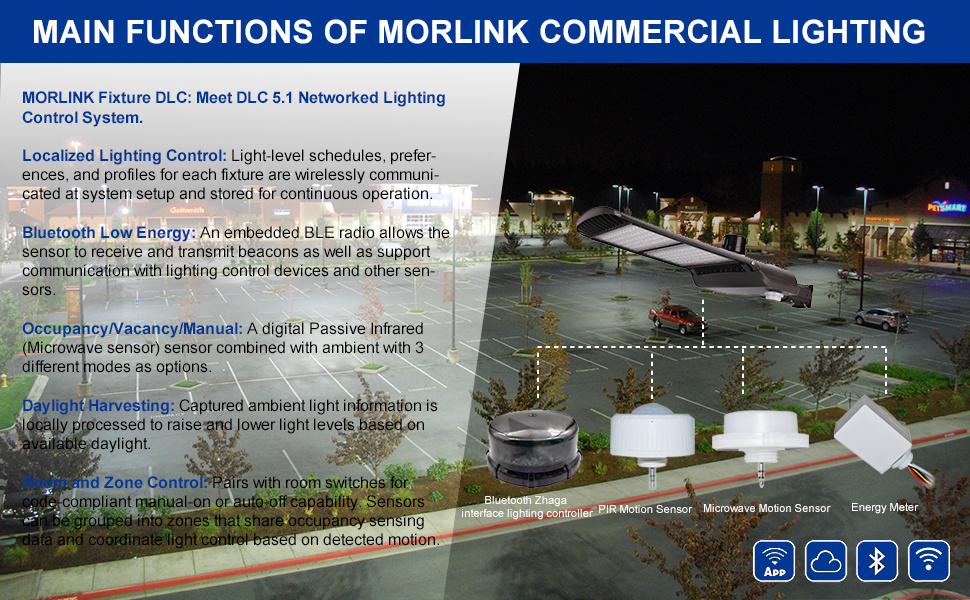

    Main Functions of Morlink Commercial Lighting Solution




    Intelligent LED Parking Lot Shoebox Light







    Intelligent LED Parking Lot Shoebox Light

    Energy Management

    Create actions and scenes that can be automatically executed to implement energy-saving strategies.
    Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather condi tions, etc.
    View, compare and analyze the power consumption of devices and groups by day, month or year.
    Device Control

    View and control devices from a map of the lighting layout.
    Monitor device conditions including, status, operation time, energy consumption and life expectancy.
    Automatic alarms when devices change to “abnormal status” and notification to maintenance team.
    Human Centric Lighting

    Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.

Cantidad
-
+

In Stock

隐藏域元素占位

Keyword:LED Light

  • Descripción
  • 右侧参数
    • Item No.:

      MA-EPLSG2-100W
    • Payment:

      TT or L/C
    • Product Origin:

      FuJian, China
    • Color:

      Black
    • Min Order:

      50
    • Lead Time:

      10-30days



    PRODUCT DESCRIPTION:

    Morstar Lighting provides a simple, safe and efficient solution. It is Smart IP66 Shoebox Street Light, which IP66-rated lamps provide at least 130 lumens per watt, which can replace outdoor lighting up to 1000W MH.

    Compared with traditional LED lamps, it has longer service life, lower energy consumption, less electricity expenditure and lower maintenance costs, and the market advantage is more obvious.




    FEATURES:

    1. New Structure Design, More Flexible Lighting Direction
    2. High Quality Drivers 100-277vac/100-347vac,surge Protection 10kv
    3. Power Selectable For Easy To Make Inventory Reserve
    4. Up To 140lm/w@cri 80 Lumens Output,L70>100,000 Hours
    5. Photocell, Daylight Harvest, Microwave Sensor, 1-10v Dim Optional
    6. With Morlink Zigbee Intelligent Control Technology, Simpler, Safer And More Efficient




    CONSTRUCTION:

    They are cast aluminium intelligent Street light design,  better cooling and easy replacement.




    RECOMMENDED USE:

    The traditional architectural style matches most of the scenes, such as parking lots, roads, seaside areas, outdoor applications, etc.

    Operating Temperature -40°F to 122°F (-40°C to +50°C)




    WARRANTY:
    5-year warranty.






    Sample Order:MA-EPLSG2-100W-50K-A-T3





    FAMILY SERIES CODE WATTAGE CCT BREAKET BEAM ANGLE OPTIONS
    MA-EPL=LED Parking Lot Light SG2 100W

    30K=3000K

    40K=4000K

    50K=5000K

    57K=5700K

    Blank

    A=Slip Filter

    B=Arm;B2=Arm(Adj) C=Trunnion;E=Yoke



    T2=Type II

    T3=Type III

    T4=Type IV

    T5=Type V

    Blank

    Ms=Motion Sersor Pc=Photocell






    DIMENSION CHART:



    POWER L (INCH) W (INCH) H (INCH)
    100W  13.14 12.40 2.42




    SPECIFICATION:



    ITEM SPECIFICATION DETAILS


    GENERAL

    PERFORMANCE

    Power Consumption 100W
    Equivalent Wattage 320W MH
    Lumens Delivered 14000LM
    Efficacy 130LM/W/140LM/W(±10%)
    CRI Ra>70/80
    Color Temperature 4000K/5000K/5700K
    Beam Angle TYPEII, TYPEIII, TYPEIV, TYPEV
    L70 Lumen maintenance 70000Hrs (Ta=30°C@L80)
    ELECTRICAL Power Factor ≥0.95
    Input Voltage 120-277VAC/120-347VAC
    Surge Protection 10KA
    Dimming 0-10V dimmable
    PHYSICAL Mounting Slip Fitter/ Direct Mount/Yoke Mount/ Square Bracket
    Operating Temperature -40°F to 122°F
    QUALIFICATION Qualifications UL/cUL, DLC5.1Premium
    Material Usage CE RoHS compliant; no mercury
    Environment outdoor / Wet, IP65
    Warranty 7 Years Warranty






    LUMINOUS INTENSITY DISTRIBUTION CURVE:

    1.MA-EPLSG2-100W



    Intelligent LED Parking Lot Shoebox Light




    ACCESSORIES:

    Intelligent LED Parking Lot Shoebox Light



    PACKING/WEIGHT INFORMATION:



    Fixture

    Outer box

    (L*W*H)

    Qty/Ctn

    (pcs)

    N.W/pcs

    (Ibs/Kg)

    G.W/pcs

    (Ibs/Kg)

    Remarks
    Fixture 18.11"*14.37"*5.71" 460*365*145mm 1 6.28/2.85 8.29/3.76 1.0M cable




    MORLINK CONTROLS:



    Morlink® Wireless Controls:
    Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compli-ance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution.  The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides infrastructure based on BLUETOOTH and ZIGBEE technology, allowing your building to face the future, easily upgrade to network solutions, and provide the ability to integrate into IoT solutions suitable for your business.


    •




    Note:
    For intelligent control products, Morstar provides two solutions:
    1. Purchase a Morlink controller to transform your existing product
    2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor has been embedded in the lamp, the labor cost for installation can be greatly reduced.

    Main Functions of Morlink Commercial Lighting Solution




    Intelligent LED Parking Lot Shoebox Light







    Intelligent LED Parking Lot Shoebox Light

    Energy Management

    Create actions and scenes that can be automatically executed to implement energy-saving strategies.
    Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather condi tions, etc.
    View, compare and analyze the power consumption of devices and groups by day, month or year.
    Device Control

    View and control devices from a map of the lighting layout.
    Monitor device conditions including, status, operation time, energy consumption and life expectancy.
    Automatic alarms when devices change to “abnormal status” and notification to maintenance team.
    Human Centric Lighting

    Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
