- Nombre del producto: Intelligent Outdoor Wall Pack Light
It is a safety isolated driver classic wall pack, 120-277VAC/120-347VAC, making sure have more optional for different countries and applications. Due to the power supply and the optical part are separated, the thermal performance is pretty good.
-
Item No.:
MA-EWP400E Series -
Payment:
TT or L/C -
Product Origin:
Fujian, China -
Color:
Black/White -
Min Order:
500
DESCRIPTION:
It is a safety isolated driver classic wall pack, 120-277VAC/120-347VAC, making sure have more optional for different countries and applications. Due to the power supply and the optical part are separated, the thermal performance is pretty good. For application, building facade, commercial, industrial, retail, hospitality buildings that demand long service life and low maintenance. It can be installed sensors fast without tools when needed, which can be used in conjunction with MORSTAR Bluetooth APP to control fixtures.
FEATURES:
• Easy installation
• Long Lifespan. Premium 2835 LED chips lasting over 50,000 hours.
• ETL/cETL/DLC premium certificate• Dimmable. Compatible with 0-10V dimming switches or lights controls.• Save up to 85% ENERGY• Strong housing and Anti-yellow glass.
CONSTRUCTION:
• IK08 borosilicate prismatic glass
• Durable die-cast aluminum housing
• light weight, and low transportation cost
RECOMMENDED USE:
•Building facade commercial, industrial, retail, hospitality buildings that demand long service and low maintenance.
Working temp:-22°F to 104°F (-30°C to +40°C). Storage temp.:-40°F to 158°F (-40°C to +70°C)
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -22°F to 104°F.

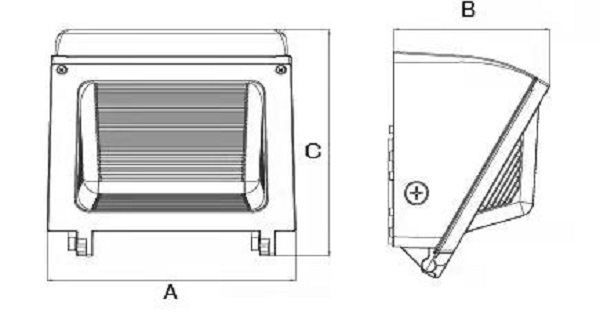

DIMENSION DRAWING:
MODEL
A (INCH)
B (INCH)
C (INCH)
30W
10.27″
6.42″
9.32″
40W
10.27″
6.43″
9.33″
50W
10.27″
6.44″
9.34″
60W
10.27″
6.45″
9.35″
80W
10.27″
6.46″
9.36″
100W
12.05″
6.42″
9.32″
120W
12.05″
6.42″
9.32″
SPECIFICATION:
ITEM
SPECIFICATION
Normal Type
GENERAL
PERFORMANCEPower Consumption
30W
40W
50W
60W
80W
100W
120W
Equivalent Wattage
100W MH
150W MH
150W MH
200W MH
250W MH
250W MH
400W MH
Lumens Delivered
3750lm
5000lm
6250lm
7500lm
10000lm
12500lm
15000lm
Efficacy
125LM/W (±10%)
CRI
Ra>80
Color Temperature
4000K/5000K/5700K
L70 Lumen maintenance
50,000hrs
ELECTRICAL
Power Factor
≥0.90
Input Voltage
120-277VAC/120-347VAC
Dimming
0-10V
PHYSICAL
Mounting
wall-mounted
Operating Temperature
-22°F to 104°F
Humidity
Operating Humidity: RH<90%
QUALIFICATION
Qualifications
ETL/cETL DLC Premium
Material Usage
RoHS compliant; no mercury
Environment
Outdoor IP65
Warranty
7 Years Warranty
LUMINOUS INTENSITY DISTRIBUTION CURVE:
FAQ：
1. How can smart lamps save money?
A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.
2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.
3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.
4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
In Stock
